Two-Wire Start Example (Generator Start/Stop)

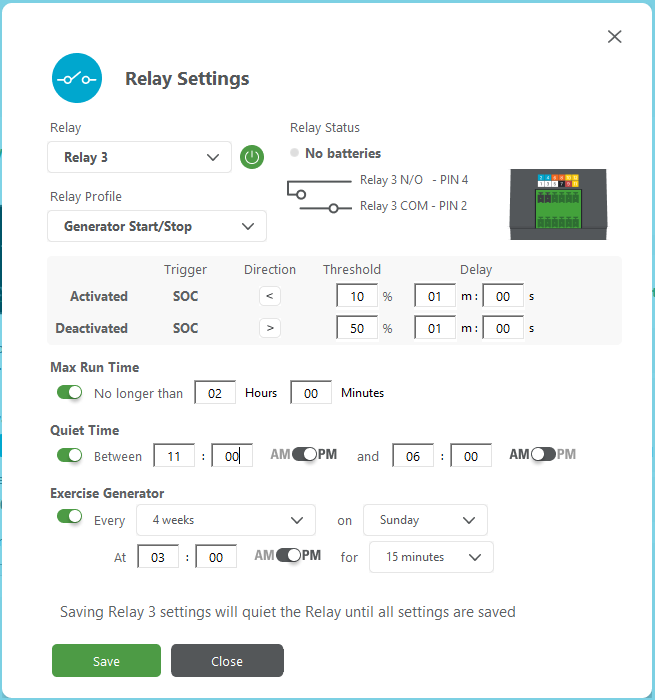

Turn ON the generator when the battery SOC drops below 10%.

Activated: 1 minute after the battery SOC drops below 10%

Deactivated: 1 minute after the battery SOC rises above 50%

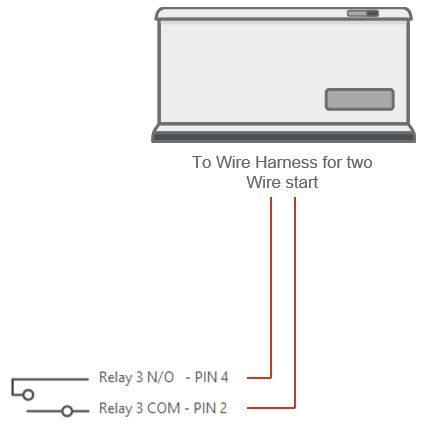

Based on the Activated settings, a minute after the battery SOC drops below 10%, pin 4 is closed (activated) and allows power flow to turn ON the generator.

Stopping the generator is based on the Deactivated settings. The switch (pin 4) is opened (deactivated), which stops the flow of power and turns OFF the generator, a minute after the battery SOC rises above 50%, after the generator runs for 2 hours, or when the system enters Quiet Time.

The generator is also turned ON every 4th Sunday at 3 PM for 15 minutes.
