Connecting LYNK II to the Sol-Ark Network

NOTICE

EQUIPMENT DAMAGE

Turn OFF all devices before connecting cables.
Do not plug an AEbus RJ45 network cable or terminator into the 10/100 Ethernet port of the LYNK II.
Do not connect a cable from the AEbus, LYNK, or Ethernet ports of the LYNK II to a WAN or MODEM port of a network router.
Mixing the LYNK Network with other networks may result in equipment malfunction and damage.

Failure to follow these instructions may result in equipment damage.

At least one battery must be connected to the LYNK Port or AEbus Port on LYNK II.
A network of batteries will communicate as one battery.
No more than one network of batteries may be connected to LYNK II.
Network termination is required for the system’s proper functioning - note some batteries and devices may auto-terminate.
LYNK II requires power. There are three possible sources: a 13-90 VDC power supply, AEbus Port or LYNK Port-enabled Discover Lithium battery, or a USB device.
Discover Lithium batteries must be set to ON to supply power and communicate data with LYNK II.

AES RACKMOUNT

Both LYNK II and AES RACKMOUNT Battery Modules are internally terminated. No extra termination is required.

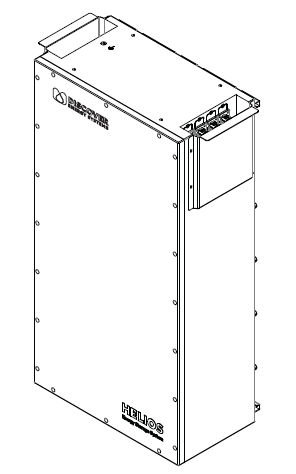

HELIOS ESS

LYNK II is internally terminated. No extra termination is required.

NOTE
HELIOS ESS batteries can support closed-loop communication with the inverter without the LYNK II Communication Gateway. Connect a CAT6 or higher straight cable from the HELIOS ESS COM2 port to the inverter’s BMS port. Without the LYNK II Gateway, additional termination is required on the HELIOS ESS. Plug a termination resistor into the COM3/COM4 port on the last battery in the LYNK network.

Connection

Before connecting LYNK II to the Sol-Ark network, ensure that all Sol-Ark devices use COMM firmware version 1.4.3.0 or later. Also, ensure that the CAN out pins for LYNK II are configured correctly. Refer to LYNK II CAN Hardware Termination and CAN Out Pin Configuration.

Insert one end of a CAT6 or higher communication cable into the LYNK II CAN out port and the other end into the correct CAN port of the Sol-Ark inverter-charger.

NOTE

Ensure that all Sol-Ark inverters are using COMM firmware version 1.4.3.0 or higher.

The CAN port locations differ across the Sol-Ark indoor (legacy) and outdoor models. Refer to the following diagrams for the CAN port location of your Sol-Ark inverter.

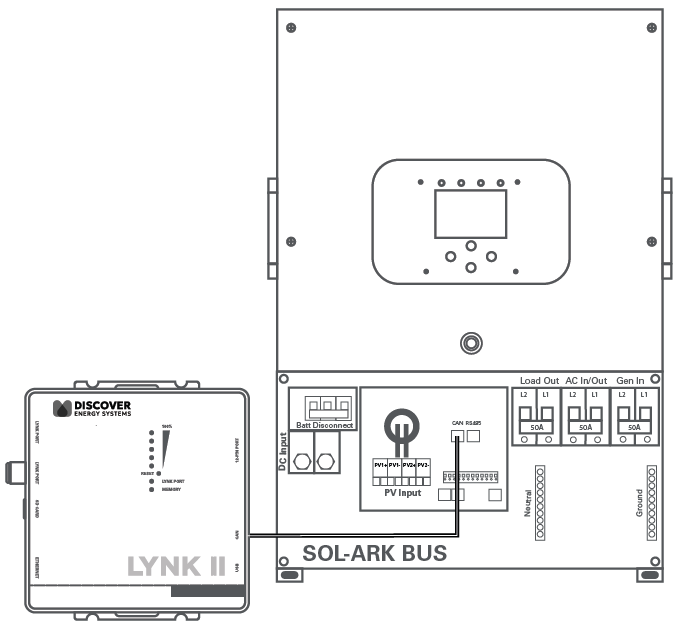

Sol-Ark 5K-P / 8K-P / 12K-P / 15K-P Hybrid Inverter (Outdoor)

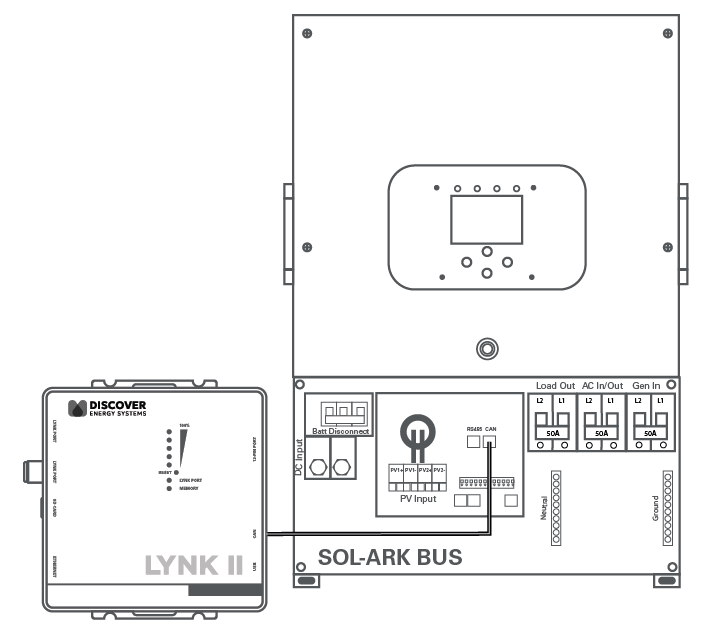

Sol-Ark 8K Hybrid Inverter (Indoor, Legacy)

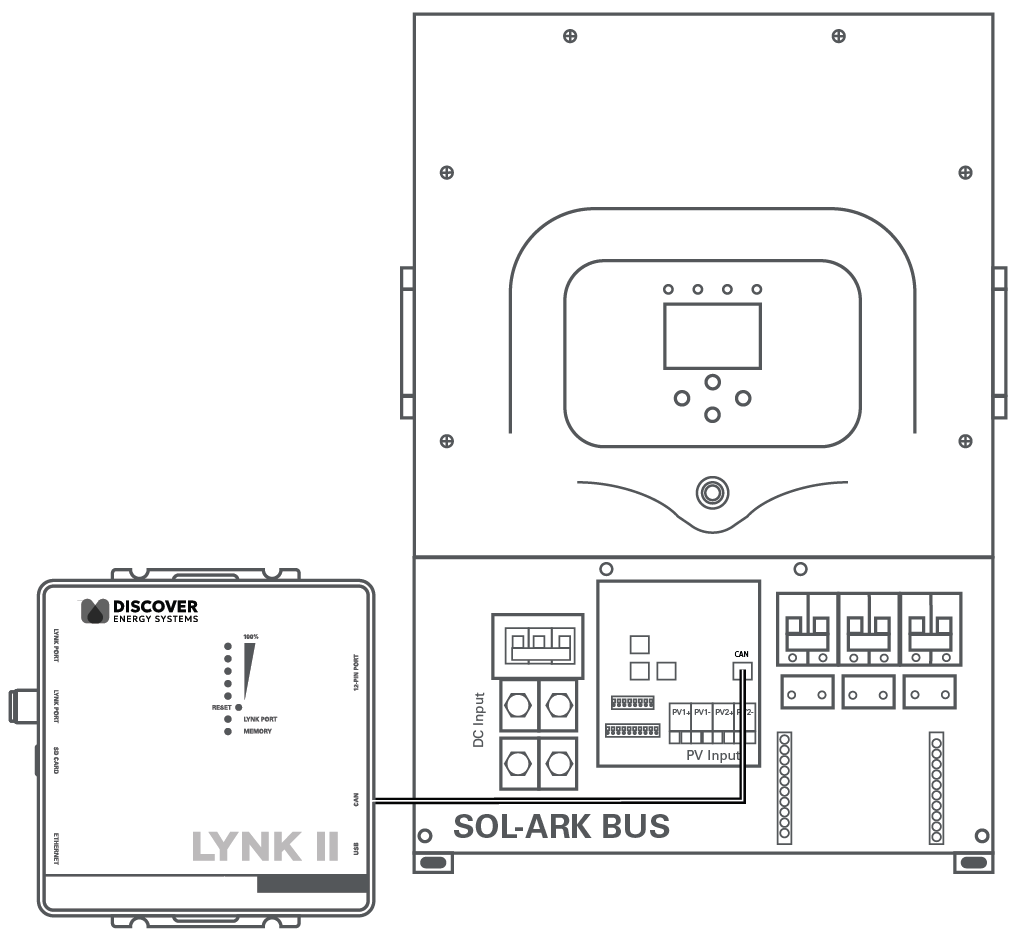

Sol-Ark 12K Hybrid Inverter (Indoor, Legacy)
