Mechanical Specifications

AES Cabinet Mechanical Specifications

Specification

212-CAB

266-CAB

318-CAB

372-CAB

426-CAB

Width (A)

1300 mm (51.2 in)

Depth (B)

1300 mm (51.2 in)

Height (C) (a)

2373.5 mm (93.4 in)

Total Weight (b)

2490 kg (5490 lb)

2850 kg (6285 lb)

3190 kg (7050 lb)

3570 kg (7875 lb)

3930 kg (8675 lb)

Battery Pack Weight (each)

350 kg (771.62 lb)

Shipping Weight (estimated)

2490 kg (5490 lb)

2850 kg (6285 lb)

3190 kg (7050 lb)

3570 kg (7875 lb)

3930 kg (8675 lb)

IP Rating

IP55

Case Material

Galvanized Steel

Color

Light Grey - RAL 7035

Anthracite Grey - RAL 7016

(a) Without lifting hooks

(b) Calculated

AES 210HV Drawings_AES 210HV Iso Left Dimension Lines.png

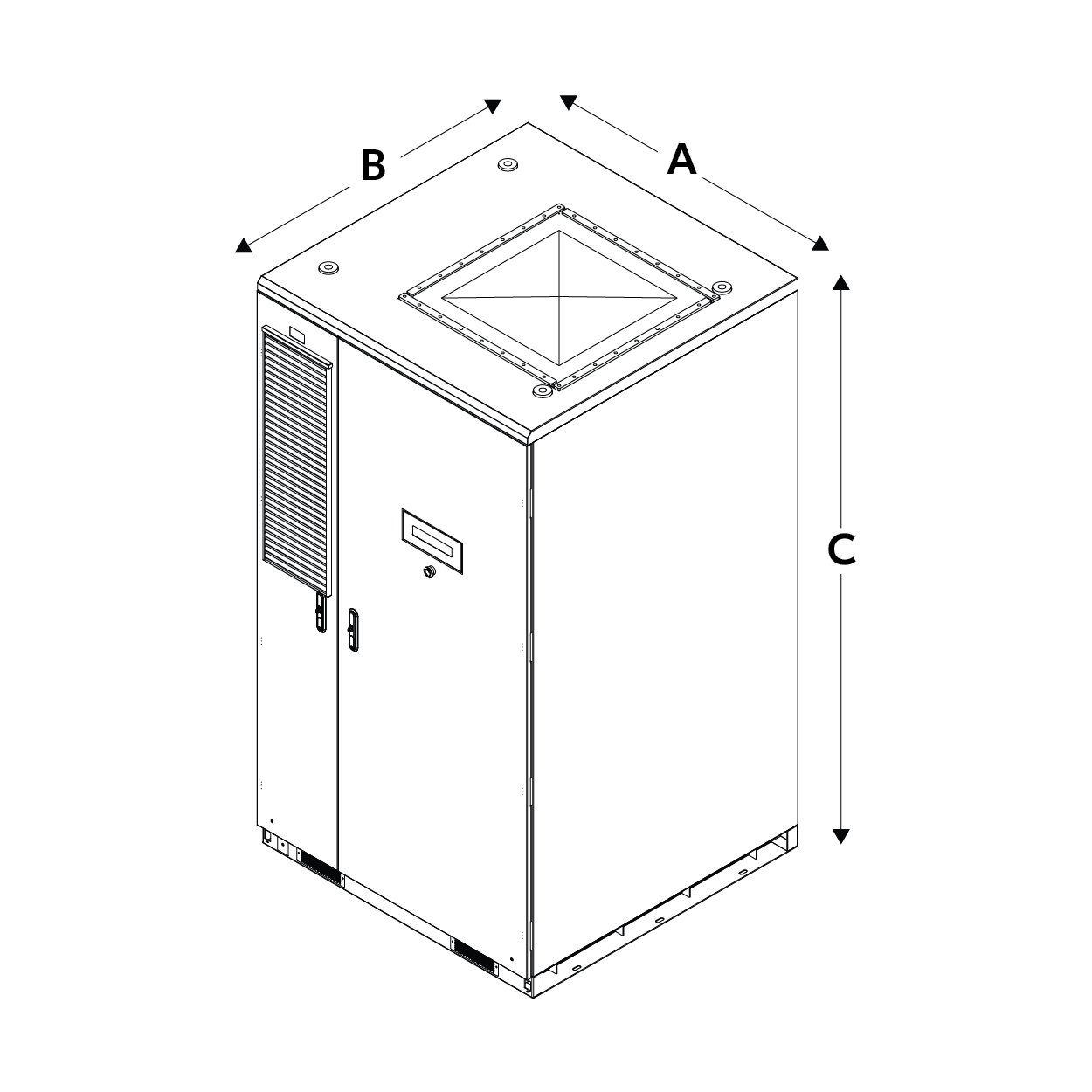

AES Cabinet Dimensions



Clearance

AES 210HV Clearance Specifications Placement.png

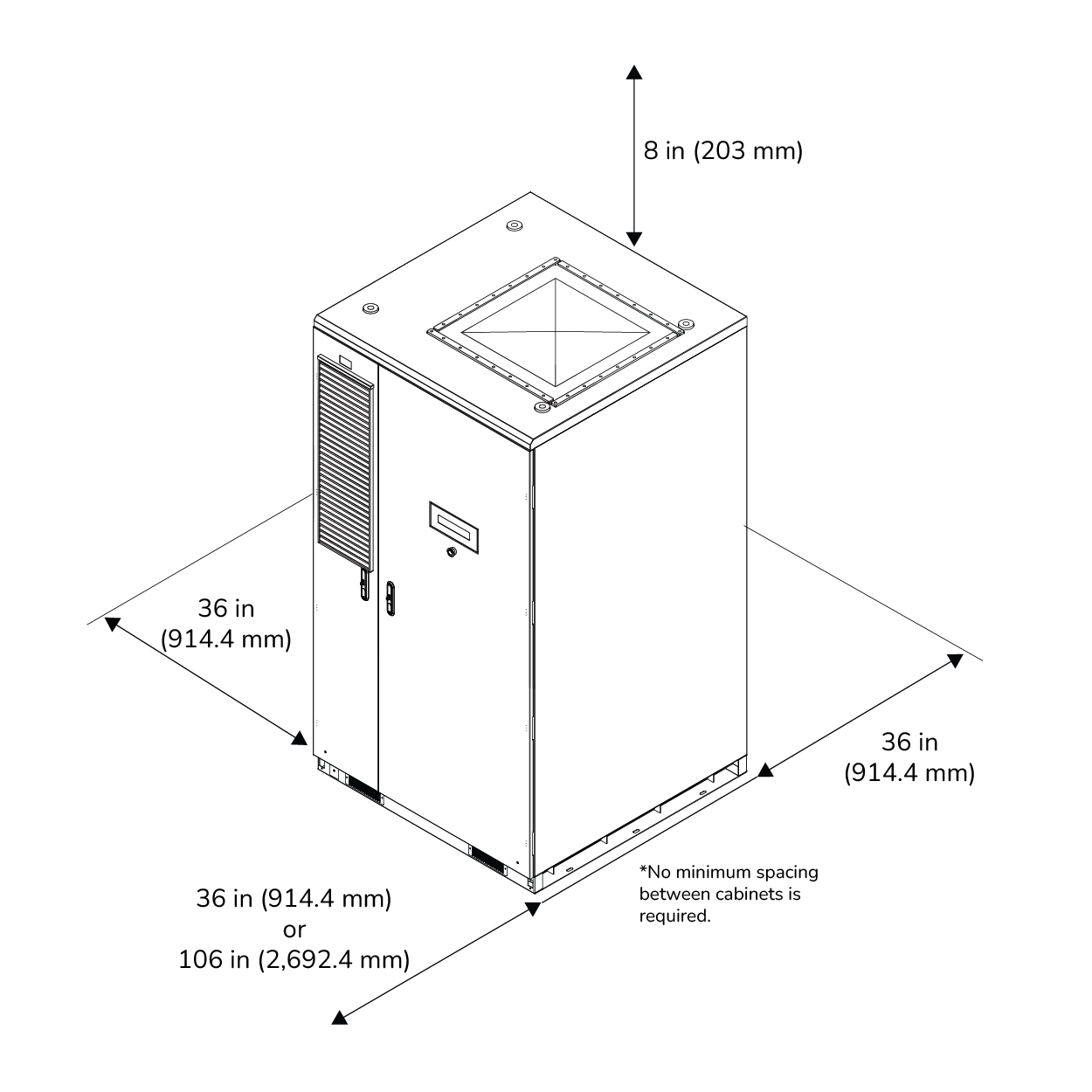

AES Cabinet Clearance

NOTE

Clearance dimensions are published for airflow and service access. Consult with the local Authority-Having-Jurisdiction for accepted spacing and separation or other requirements applicable for the area of installation.




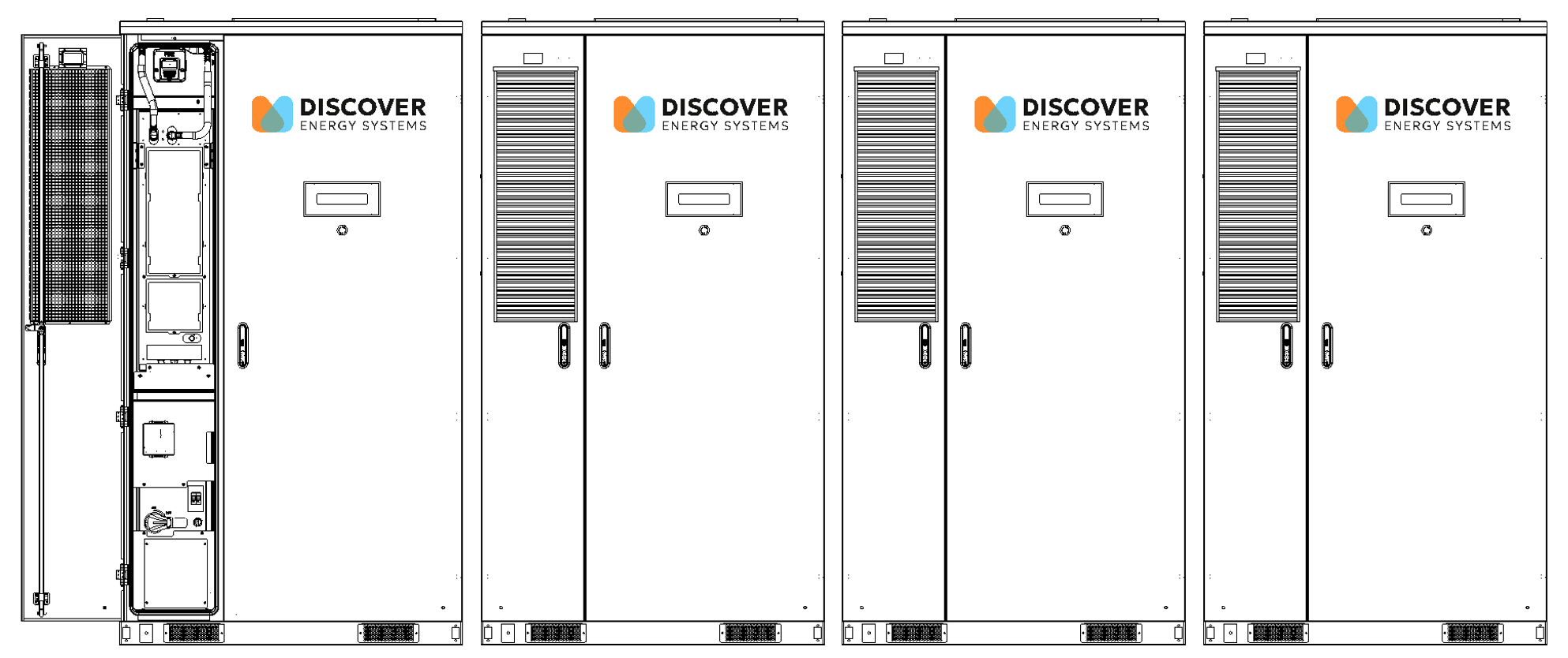

No minimum spacing between cabinets

NOTE

The AES Cabinets may be placed side by side as long as the front and back airflow and service access spacings are adhered to. Consult with the local Authority-Having-Jurisdiction for accepted spacing and separation or other requirements applicable for the area of installation.
