Fused DC Distribution

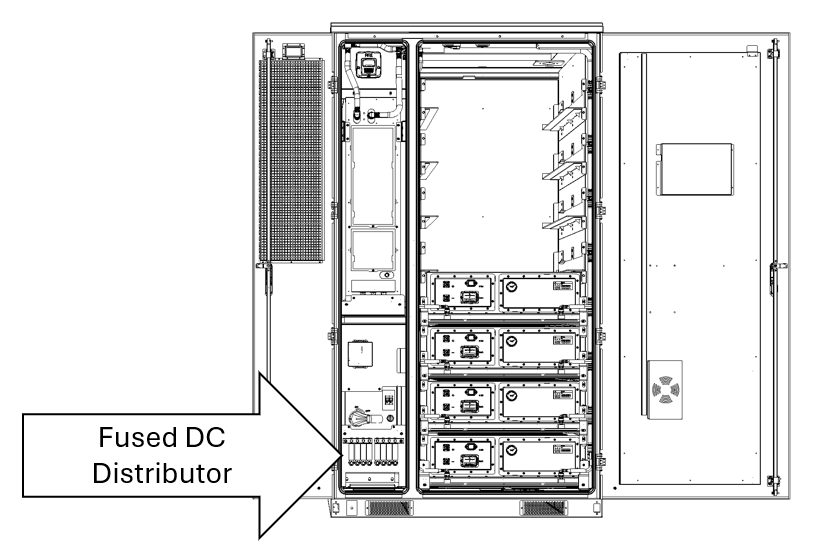

Location of fused DC distribution

The Fused DC Distributor is a critical component inside the AES 210HV cabinet. It provides a centralized connection point for high-current DC wiring and safely distributes power between the battery and connected devices, such as inverters.

Key features include:

  • Fused Connections. Eight fuse terminals (four positive, four negative) with 70A fuses (alternative fuses available between 35A-150A) each for fault protection during operation.

  • High Voltage Capability. Designed to handle the AES 210HV's high voltage with robust interrupt capacity to support high-power applications.

  • Convenient Access. Equipped with a removable protective shield for safety, installation and maintenance.

  • Cable Compatibility. Studs allow wires to inverters and other devices to be connected with ring terminals.

The DC Distribution simplifies wiring, enhances safety, and supports scalable configurations in high-voltage energy systems.
