Luxpower Open-Loop Configuration
Refer to the latest Discover Energy Systems documentation for battery values and the latest Luxpower documentation for menu navigation and details on the setup procedure.
NOTE |
|---|
Depending on your system and particular use case, there may be other settings that require configuration. Refer to the inverter manual for information on these settings. |
Set the Discover Lithium batteries to ON and set the inverter to ON.
Using the inverter touch screen interface, touch the
Gear icon to set the properties as indicated in the following tables.
Touch the
Up and
Down buttons to scroll through screens.
Touch the
Set button to save changes on a screen.
> Advanced

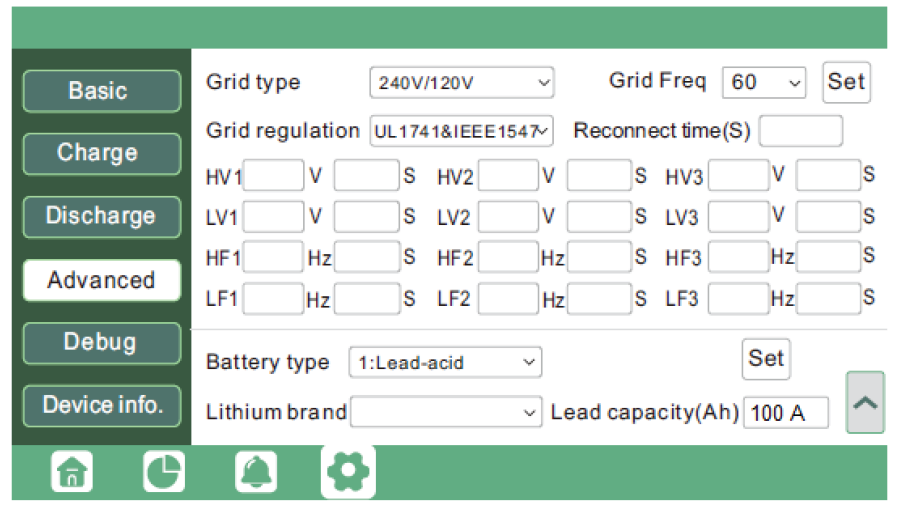

Advanced Screen 2
Advanced (Screen 2) | AES RACKMOUNT 48-48-5120 / 48-48-5120-H | HELIOS ESS 52-48-16000 |
|---|---|---|
Battery Type | Select 1: Lead-acid when operating the inverter and Lithium batteries in an open-loop configuration. | |
Lead capacity (Ah) | 100 A x number of batteries | 314 A x number of batteries |
> Charge

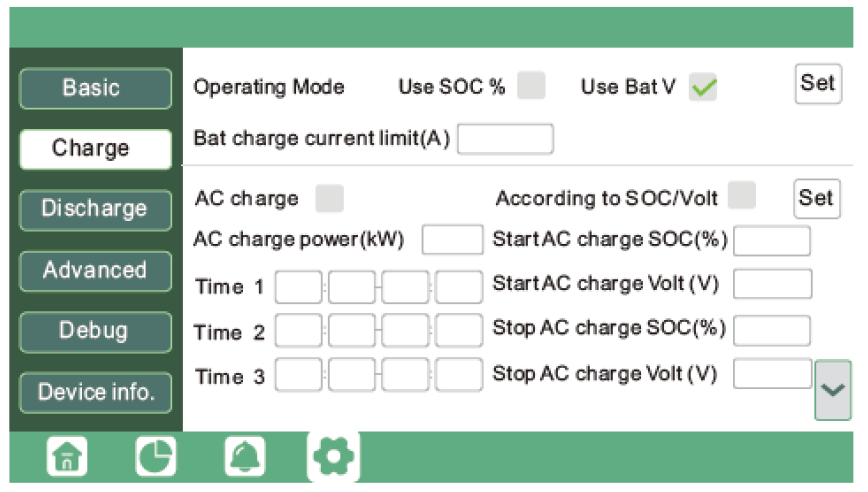

Charge Screen 1
Charge (Screen 1) | AES RACKMOUNT 48-48-5120 / 48-48-5120-H | HELIOS ESS 52-48-16000 |
|---|---|---|
Operating Mode | Select Use Bat V when operating the inverter in an open-loop charge configuration. | |
Bat charge current limit (A) | 95 A x number of batteries | 200 A x number of batteries |

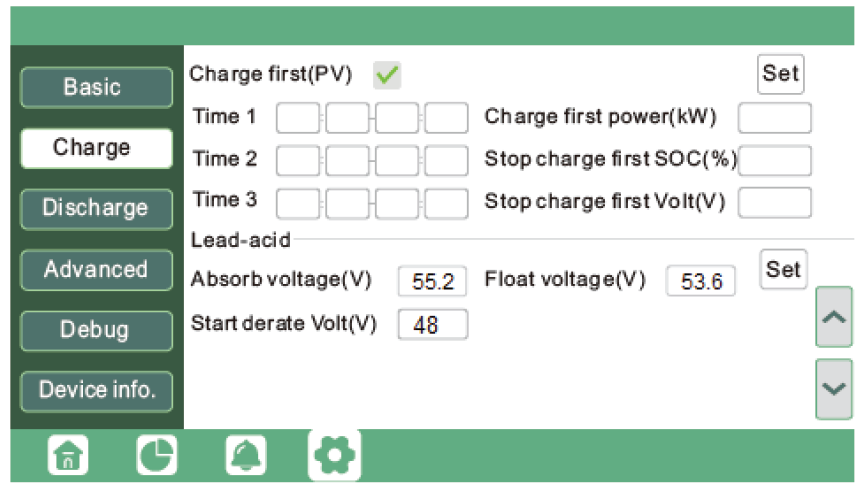

Charge Screen 1
Charge (Screen 1) | AES RACKMOUNT 48-48-5120 / 48-48-5120-H | HELIOS ESS 52-48-16000 |
|---|---|---|
Absorb voltage (V) | 55.2 | |
Float voltage (V) | 53.6 | |
Start derate Volt (V) | 48 | |
> Discharge

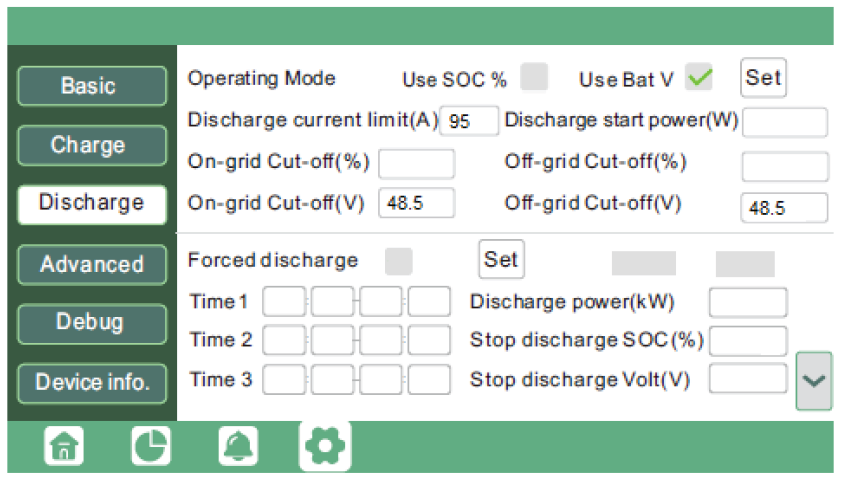

Discharge Screen 1
Discharge (Screen 1) | AES RACKMOUNT 48-48-5120 / 48-48-5120-H | HELIOS ESS 52-48-16000 |
|---|---|---|
Operating Mode | Select Use Bat when operating the inverter in an open-loop charge configuration. | |
Discharge current limit (A) | 95 A x number of batteries | 200 A x number of batteries |
On-grid cut-off (%) | Set to voltage greater than the Start derate Volt. The recommended value for the cut-off is 48.5 V or more. | |
Off-grid cut-off (%) | ||
