Mechanical Specifications

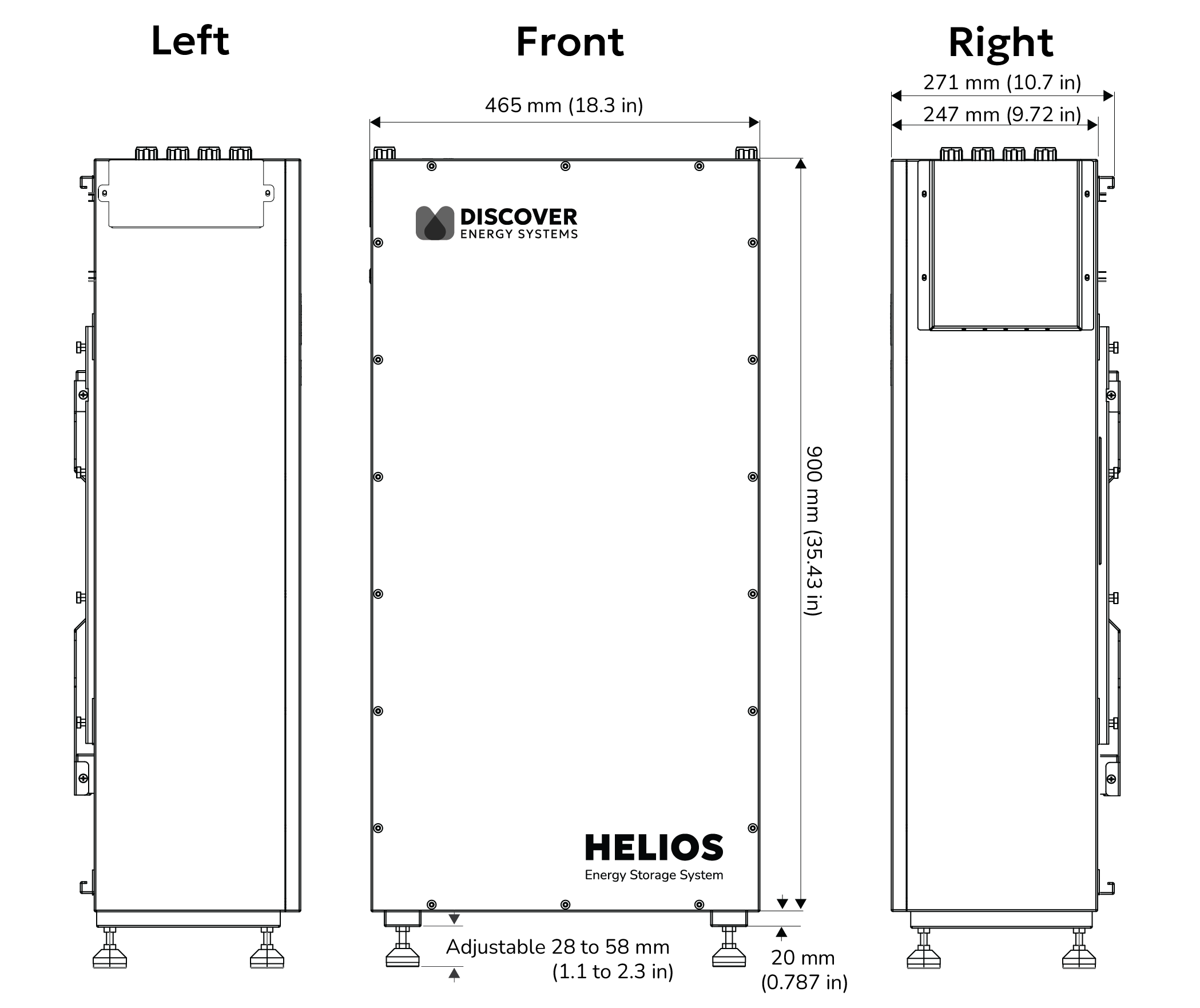

HELIOS ESS Mechanical Specifications

Mechanical Specification

52-48-16000 | 900-0077

Chemistry

LiFePO4

Height (body only)

920 mm (36.22 in)

Height (including feet)

948 to 978 mm (37.32 to 38.5)

Width

465 mm (18.31 in)

Depth (body only)

247 mm (9.72 in)

Depth (including Wall-Mount bracket)

271 mm (10.7 in)

Terminal

Quick Connect Plug-and-Pull Terminal

Weight

136 kg (299.83 lb)

Shipping Weight
(includes Wall-Mount Bracket, cables, bolts, and rope handles)

150 kg (330.7 lb)

IP Rating

IP65

Case Material

Galvanized Steel Sheet

Color

Pantone Gray 3C

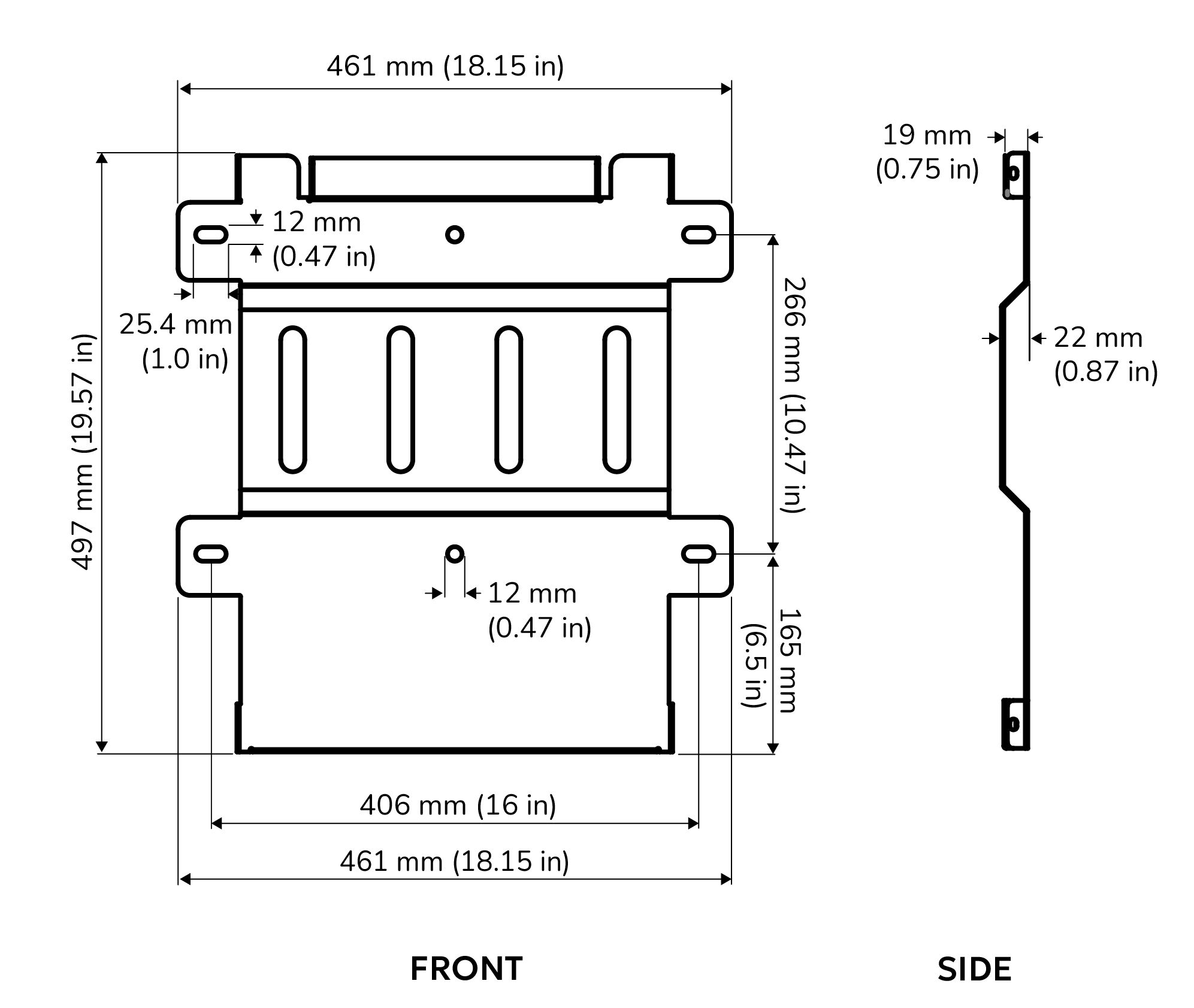

HELIOS ESS Wall-Mount Bracket Specifications

Specification

Upper Bracket

Lower Bracket

Height

340 mm (13 3/8 in)

190 mm (7 1/2 in)

Width

461 mm (18 1/8 in)

Depth

21 mm (13/16 in)

20 mm (13/16 in)

Weight

3.8 kg (8.4 lb)

Material

Galvanized Steel Sheet


NOTE

Wall-mount bracket updates.

  • For information on the earlier wall-mount bracket for HELIOS ESS batteries with serial numbers before DLPHD48B250780001, refer to the installation instructions in Rev C.

  • Batteries with serial number DLPHD48B26230xxxx or higher include the latest update to the wall mounting brackets, available in this manual revision (Rev L).
