Cabinet Grounding


Grounding Options

Grounding Points

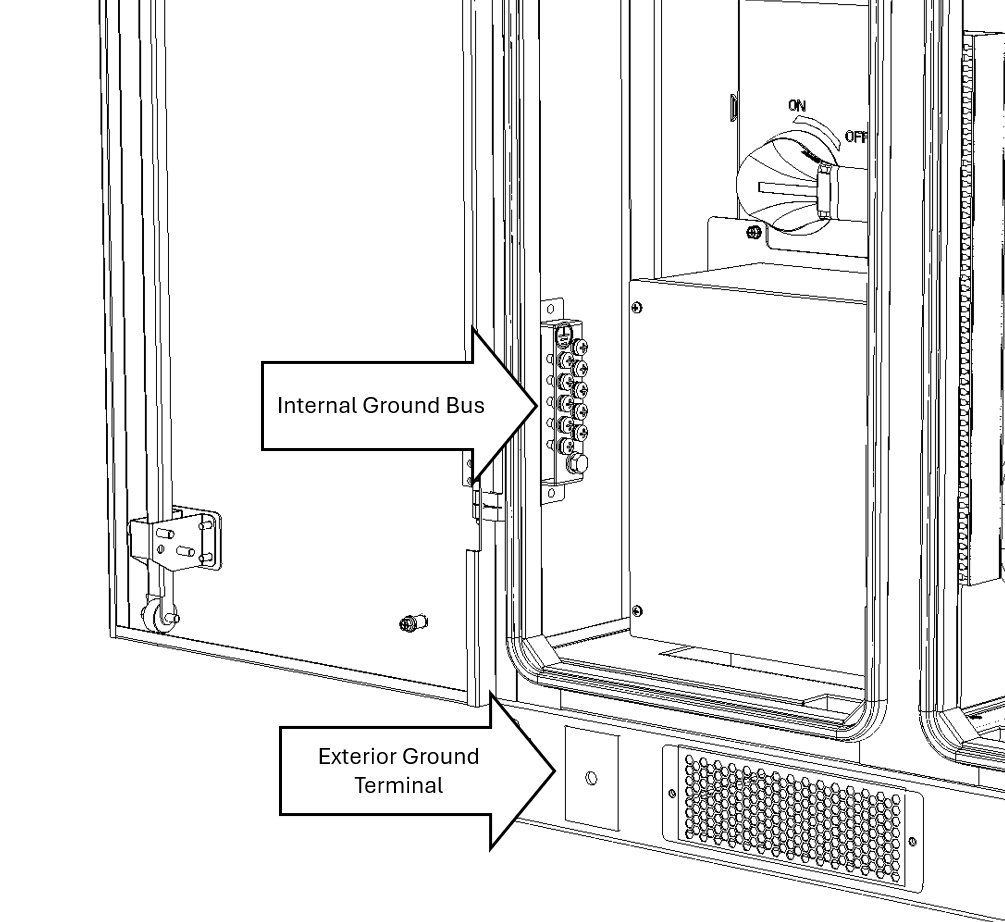

The AES Cabinet includes two designated grounding points to ensure proper electrical bonding and system safety.

  • Exterior Ground Terminal: Located on the front-bottom-left of the enclosure, this terminal is used for external system grounding, providing a secure, low-resistance connection to the cabinet’s exterior.

  • Internal Ground Bus: Positioned on the bottom-left wall inside the enclosure, this bus offers a dedicated grounding point for conductors within the cabinet, ensuring reliable internal grounding.

NOTICE

WATER INGRESS AND ENCLOSURE DAMAGE

Avoid creating additional holes in the enclosure. Use the external ground terminal for exterior grounding or the internal ground bus for connections inside the battery cabinet.

Failure to follow these instructions may result in equipment damage.
