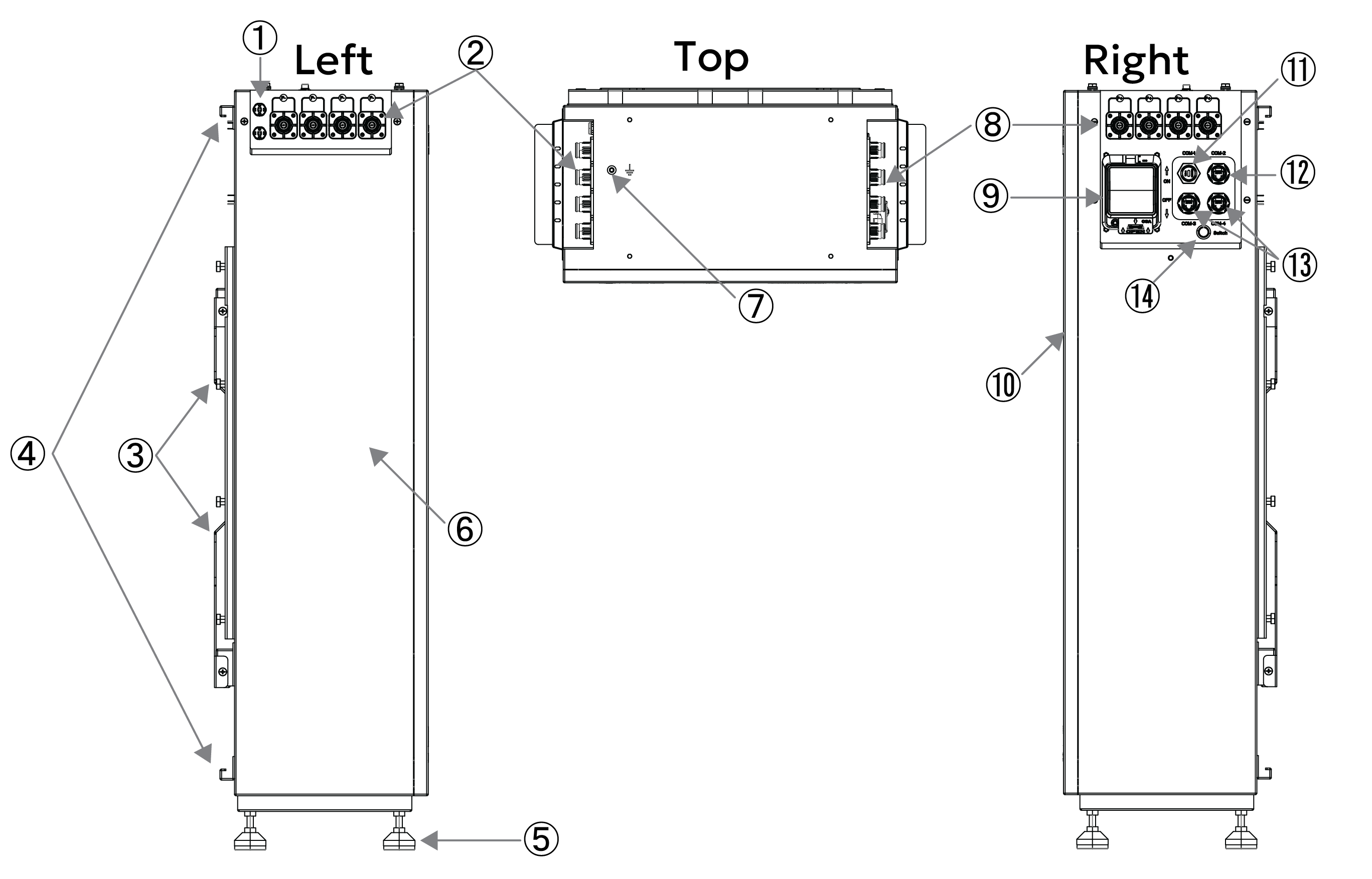

Item |
Description |
|---|---|
|
1 |
Breather valves |
|
2 |
4 x Battery negative terminals (-) black (with quick connects) |
|
3 |
Wall-mount bracket |
|
4 |
Brackets for lifting with rope handles |
|
5 |
Adjustable feet |
|
6 |
Battery casing |
|
7 |
Grounding screw |
|
8 |
4 x Battery positive terminals (+) orange (with quick connects) |
|
9 |
Single-Pole (positive only) 200 A breaker |
|
10 |
Front casing cover |
|
11 |
USB Type-C port for diagnostics and technical support |
|
12 |
COM2: CAN port for closed-loop communication with supported inverters. For information about the COM2 port and which inverters support direct communication, see HELIOS ESS Closed-Loop Communication - Supported Inverters. |
|
13 |
COM3, COM4: 2 x LYNK ports for communicating battery information |
|
14 |
ON/OFF key |
