COM 3/COM 4 (LYNK Port)
The COM3 and COM4 ports (LYNK ports) enable multiple Discover batteries to communicate and interact in a closed-loop network. The LYNK ports also enable the HELIOS ESS batteries to work together in a closed-loop communication system with other networked devices, such as inverter-chargers. A closed-loop system enables safety and optimizes system performance.

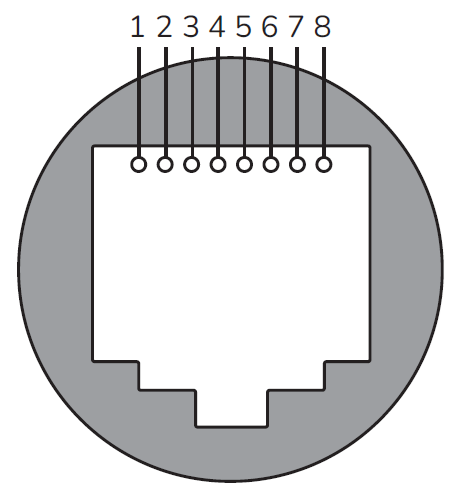

LYNK Port Communication RJ45 Pin Assignment
Pin Number | Function | |
|---|---|---|
 | 1 (1) | Reserved. Do not use. |
2 (1) | Reserved. Do not use. | |
3 (1) | Reserved. Do not use. | |
4 | CAN High | |
5 | CAN Low | |
6 (1) | Reserved. Do not use. | |
7 | CAN Ground | |
8 | CAN Ground |
(1) Do not populate. Do not terminate to power. Do not terminate to ground. Do not terminate to CAN_L or CAN_H. Unless instructed by Discover Energy Systems.
