Aerosol Fire Extinguishing Device
Overview

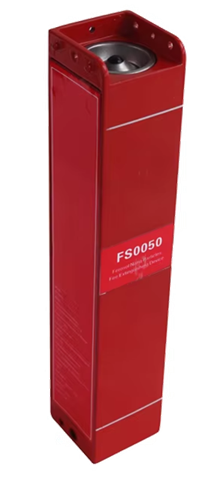

The FS0050 Aerosol Fire Extinguishing Device is a high-efficiency fire suppression solution designed with environmental compliance in mind. It provides a clean, high-tech alternative to Halon systems and is ideal for sensitive environments such as energy storage systems, communication rooms, and data centers.
Product Features
Compact size and ambient pressure storage, eliminating the need for piping.
Rapid fire suppression with no blind spots.
Non-toxic, non-corrosive, and ozone-friendly.
Operating Environment
Operating temperature range: -30°C to +70°C
Relative humidity: ≤95% RH
Protection Area Requirements
The protected area should be relatively enclosed to ensure effective fire suppression.
Working Principle
When the FS0050 device receives an activation signal, the aerosol-generating agent inside the cartridge is triggered. The chemical decomposition of the agent, combined with a cooling component, results in an effective fire suppression process.
Technical Specifications
Specification | FS0050 |
|---|---|
Discharge Time | ≤14 s |
Discharge Delay Time | ≤5 s |
Nozzle Heat Distance | ≤75°C at 400 mm (167°F at 15.75 in) from the nozzle |
Casing Surface Temperature | ≤75°C (167°F) |
Agent Weight | 60 g |
Fire Suppression Capacity | 1 m³ |
Dimensions | 52 x 54 x 272 mm (2 x 2.13 x 10.7 in) |
Net Weight | 1200 g (2.65 lb) |
Multi-unit Connection | Can connect in series (compatible with FS0015 devices, up to 3 units) |
